The ETL listed to UL 458 standards AIMS 3000 watt pure sine inverter charger has surpassed the ETL requirements and includes a 2 year warranty. This inverter is a a combination of an inverter, battery charger and AC auto-transfer switch into one complete system with a peak DC and AC conversion efficiency of 92%. It is unique as the inverter will bypass 50 amps 120V or 240V and outputs 120, ideal for RVs, work trucks, food trucks and boats. It is packed with unique features and it is one of the most advanced inverter chargers on the market today. This inverter also features power factor corrected, sophisticated multi-stage charging and pure sine wave output with unprecedentedly high surge capability to meet demanding power needs of inductive loads without endangering the equipment.
The powerful battery charger is capable of 12 volts at 100 amps, and with power factor corrected, it uses 20-30% less energy from AC input than a standard charger, avoiding nuisance breaker trips or generator overloads. In response to the increasing demand of more advance battery charging, this model is equipped with Battery Temperature Sensing for increased charging precision. The overloads capacity is 300% of continuous output for up to 20 seconds to reliably support tools and equipment longer.
The transformers have been consistently improved for years to achieve the best balance of conversion efficiency, idle consumption and minimum THD. The idle consumption of the line is ultra-low, roughly 1.5% of its rated power. The AC battery priority switch and auto generator start functionally making it ideal to work in either backup power or renewable energy applications.
In AC priority mode, when utility AC power cuts off, the transfer relay is de-energized and the load is automatically transferred to the inverter output. Once the qualified AC utility is restored, the relay is energized and the load is automatically transferred to AC utility.
When customized to battery priority mode via the DIP switch, the inverter will extract power from external power sources in renewable energy systems and a minimal cycle of the battery will be required. With the availability of the auto generator start, an electrical generator can be integrated into the system as a backup and started when the battery voltage goes low.l
Features

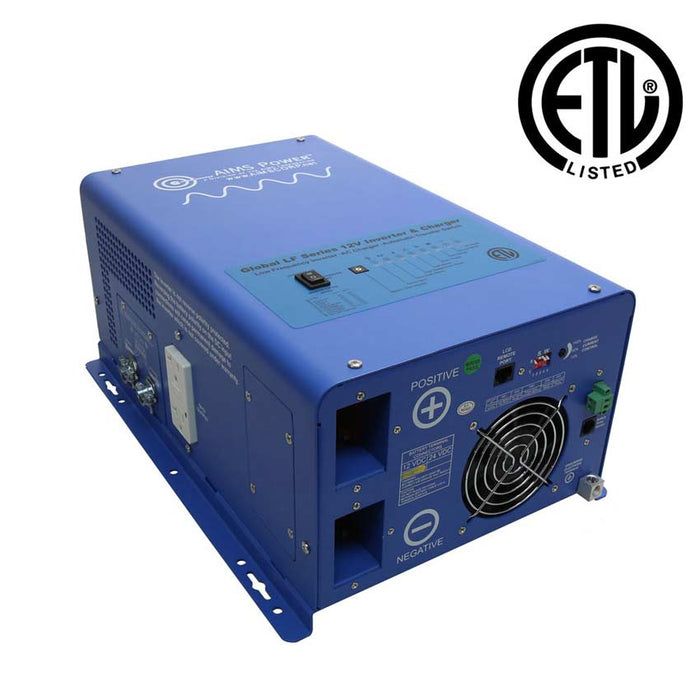

Listed to UL 458 Standards
Bypasses 50 amps 120V or 240V and outputs 120V
2 year warranty
3000 watt low frequency inverter
9000 watt surge for 20 seconds -3x surge capability
Battery priority selector

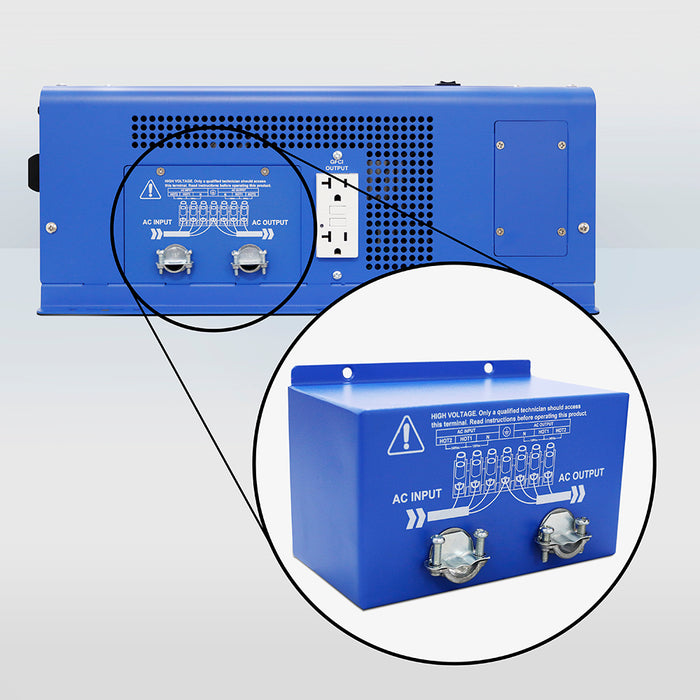

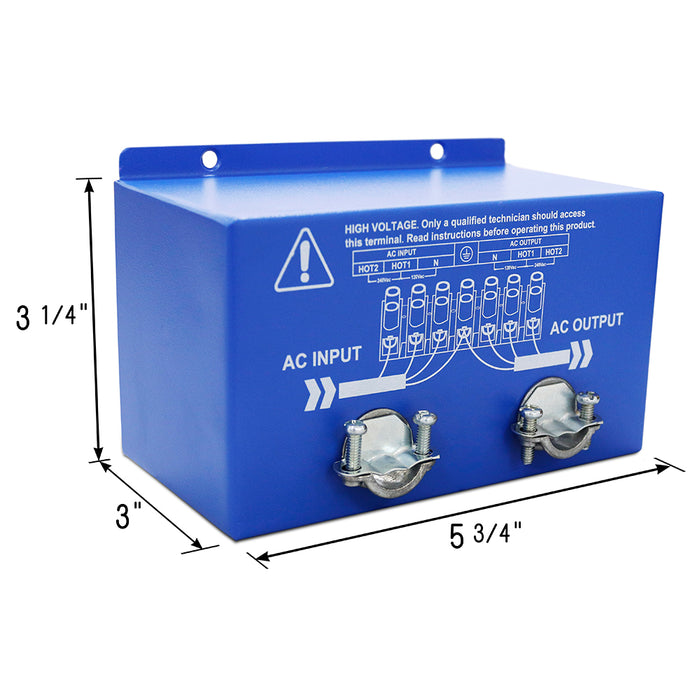

AC direct connect terminal block
GFCI – 20 amps
Marine coated and protected
Multi stage smart charger 100 amps
Remote panel available
Auto gen start
Auto frequency
10msec typical transfer time
7 battery type settings for charger including lithium
Specifications
OUTPUT
Continuous Output Power
3000 Watts / 3KW
Surge Rating (20 secs)
9000 Watts / 9KW
Starting Electric Motor (HP)
3 HP
Output Waveform
Pure Sine
Nominal Efficiency
>92% (Peak)
Line Mode Efficiency
>95%
Power Factor
.9 – 1
Nominal Output Voltage (rms)
120Vac
Output Voltage Regulation
± 10% RMS
Output Frequency
50/60 Hz ±0.3Hz
Short Circuit Protection
YES. Current Limit Function (fault after 1 sec)
Typical Transfer Time
10ms (MAX)
Max THD @ Full Linear Load
<20%
DC INPUT
Nominal Input Voltage
12 Vdc
Minimum Start Voltage
10Vdc
Low Battery Alarm
10.5Vdc / 11.Vdc
Low Battery Trip
10Vdc / 10.5Vdc
High Voltage Alarm & Fault
16Vdc
High DC Input Recovery
15.5Vdc
Low Battery Voltage Recover
13Vdc
Sleep Mode Threshold
>50 Watts (Power Saven On)
Input Voltage Range
Narrow: 100-135Vac Wide: 90-135Vac
Input Frequency Range
Narrow: 47-55 ±0.3Hz @ 50Hz, 57-65 ±0.3Hz @ 60Hz
Output Voltage
Depends on battery type
Charge
Charger Breaker Rating (120 Vac)
30A
Max Charge Rate
100A
Over Charge Protection Shutdown
15.7V
Battery Type
Fast Vdc Float Vdc
Gel USA
14 13.7
AGM 1
14.1 13.4
AGM 2
14.6 13.7
Sealed Lead Acid
14.4 13.6
Gel Euro
14.4 13.8
Open Lead Acid
14.8 13.3
Lithium
14.4 (NOTE: INVERTER MAY SAY CALCIUM BUT CHARGING ALGORITHM BUILT INTO THE INVERTER IS FOR LITHIUM)
