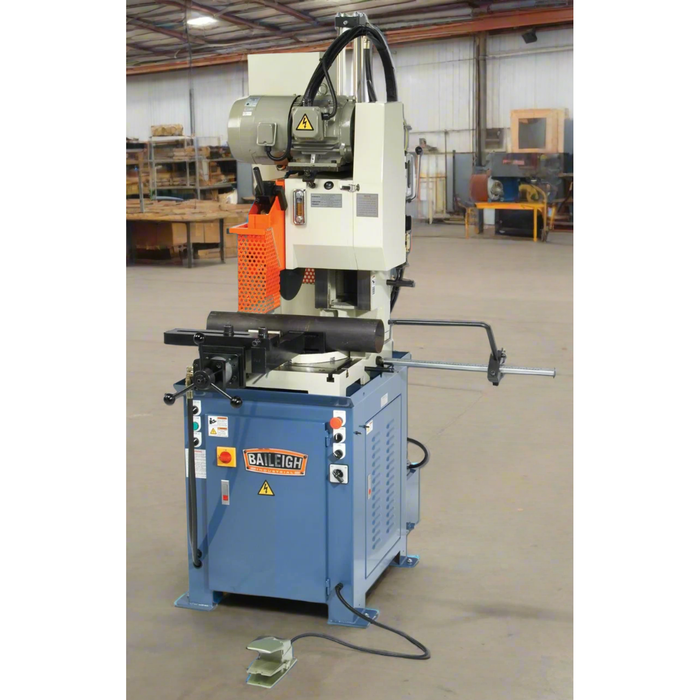

Cold Saw | Semi-Automatic | Baileigh Industrial BA9-1002634

Baileigh Industrial CS-C485SA 16" 485mm Heavy Duty Semi-Auto EVS Column Type Cold Saw BA9-1002634

Product Description

This vertical column cold saw weighs an impressive 1,898 lbs. That steel construction lets you cut heavy materials and produce a machined-like surface that doesn't need clean-up.

Features

• Features include: 5 hp blade motor runs on 220-volt 3-phase power, accepts up to a 16.5” blade, comes with both standard flat and Vee jaws, and a Yaskawa® inverter drive that controls the variable speed from 40 to 240 rpm
• Hardened and ground 2” slideways are attached to the solid column for durability and trouble-free movement
• Efficient combination of drive motor, hydraulic feeding system, and coolant system will provide decades of profitable use, even in a demanding shop
• Hydraulic downfeed and upfeed can efficiently tackle high production applications - You can limit the upward stroke or travel for faster cycle times and production
• Semi-automatic system is simple to operate: just step on the foot pedal and the blade will descend to cut your material while oiler system, with one-shot lube, keeps the saw head moving smoothly
• Foot pedal clamps the hydraulic self-centering vise. You don’t have to adjust when switching between material sizes due to after cutting, the blade automatically shuts off and returns to home position
• American-style vise has jaws on both sides of the material to increase blade life. Vise slides to allow for a continuously variable range of positions
• Metered stop rod ensures repeatable lengths for efficient production
• Rigid base gives the saw the structural strength to cut large volumes of maximum capacity material built with a steel framework that prevents wobbling and maintains accuracy
• Flood coolant system makes blades last longer and maintains a high cut quality while integrated chip brush cleans away debris for increased blade life
