Continuous Mixer | 208V 3 Phase & 220V Single Phase | 9 HP | IMER Koine Dual 1106312

IMER Koine Dual Continuous Mixer 208V 3 Phase & 220V Single Phase 9 HP 1106312

Product Description

Single-phase/three-phase continuous cycle mixing pump with
variable speed, suitable for pumping or spraying all dry premixed
materials

Variable speed. Suitable for pumping or spraying all dry premixed materials. Self-configuration of the machine based on the available single-phase or three-phase power supply and the available electric power from 3 to 8 kW. Data display on smartphone via Bluetooth through the IMER CONNECT app.

Standard Equipment (includes)

• Dust grate with vacuum port

• R8 Stator and rotor with tab

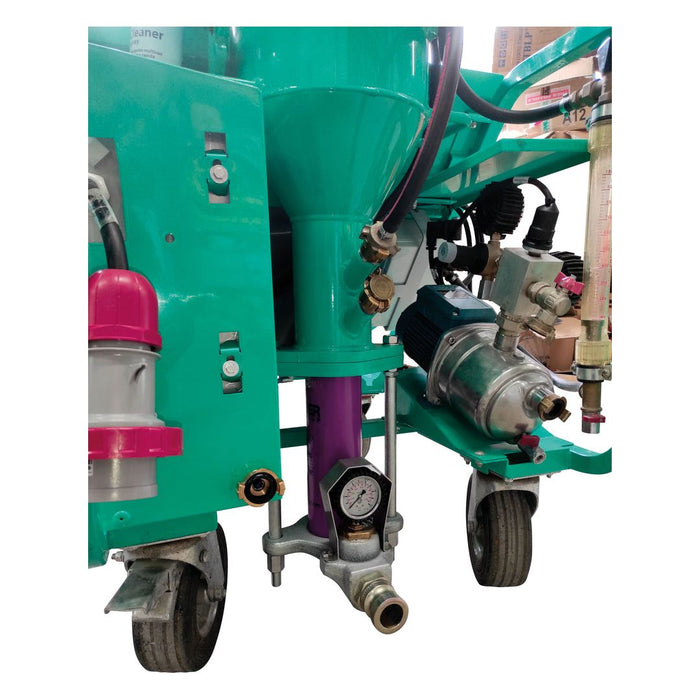

• Turbo mixer kit with material delivery pressure gauge

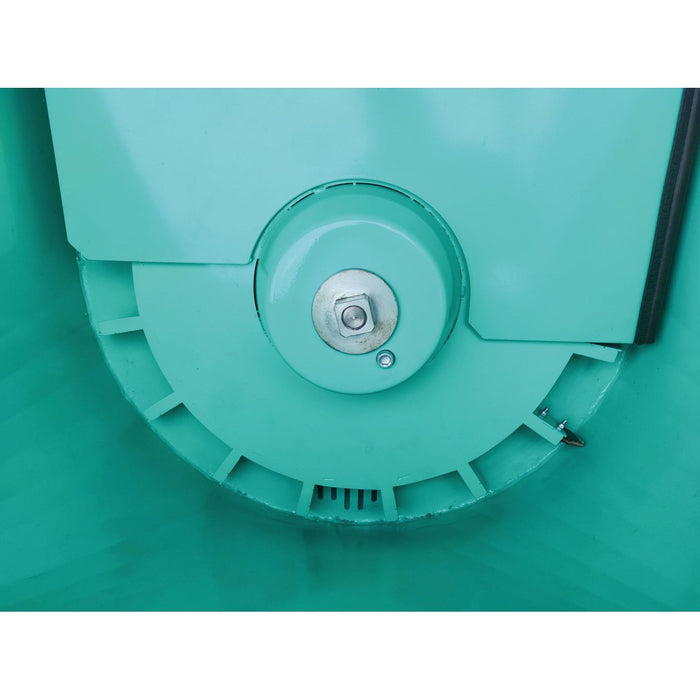

• Gear-driven feed impeller

• Self-priming stainless steel water pump

• Water system with flow meter and drainage valves

• 35 mm hose cleanout adapter

• 133’ electric cord

• 130’ water hose Ø 19 mm (3/4”)

• 33’ material hose Ø 35 mm (1-3/8”)
  with camlock fittings

• Integrated tool storage box

• Clean up kit (scraper and sponge)

• 50’ push button remote

Applications

Suitable for pumping or spraying all dry premixed materials

• Cement / lime / gypsum plaster based
• Structural reinforcement mortars
• Anti-humidity restorative plasters
• Insulating plasters based on polystyrene or cork
• Structural reinforcement mortars
• Grout / Core-Fill Grout
• Cement / anhydride based self-levelling screeds
• Thermal insulating screeds based on cork or polystyrene
• Fireproofing mortar
• Glues for thermal insulation coatings
• Binders / mortars for injections

The 8-level speed adjustment, even when powered in three-phase, makes it possible to use the Koine Dual for the application of skim coats for insulation coatings and for injecting grout even when the quantity of injectable material is reduced.

Functioning

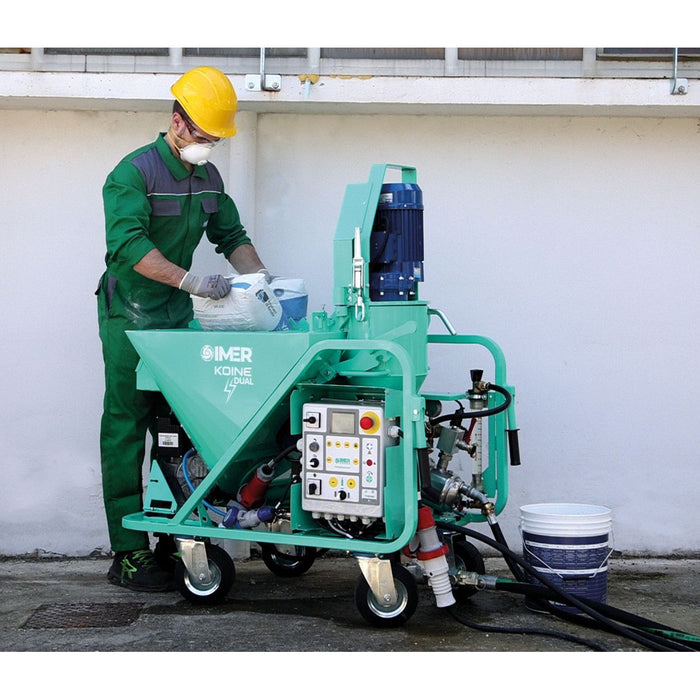

Connect the machine to the available electrical network. The machine will automatically adapt its maximum speed to the available power. The product contained in the bags, or coming from the silo, is poured into the hopper, where a feeding wheel will fill the mixing chamber in a continuous and constant way. The water needed to obtain the mix is injected into the mixing chamber by a stainless steel pump. The water flow is kept constant by a particular stabilization system and controlled by a valve which starts or stops the flow when necessary.The amount of water in the mixture can be viewed in the flow meter and can be adjusted according to need using a micrometric valve.The material is mixed with water and immediately sucked by the eccentric screw pump, to then be pushed into the pipe until it reaches the end of the spray gun. From here, with the help of the air supplied by the standard built-in compressor, it is sprayed on the application area, from a distance of about 20 cm. The material flow can be started or stopped directly from the spray gun by opening or closing the air valve. Washing is simple, very fast and without spreading water and material in the work area. The only area that needs to be cleaned is the one where the mixture takes place. The unused dry material can remain in the hopper and be removed if necessary, by opening the appropriate discharge plug at the bottom of the hopper.Koine Dual is equipped with status diagnostics, which ensures electrical protection in any case of system overload or use anomaly, indicating the complete status of the machine on the 5″ TFT display:

• Supply voltage and power
• Working voltage
• Current consumption
• Work hours
• Type of anomaly
• Type of stator used

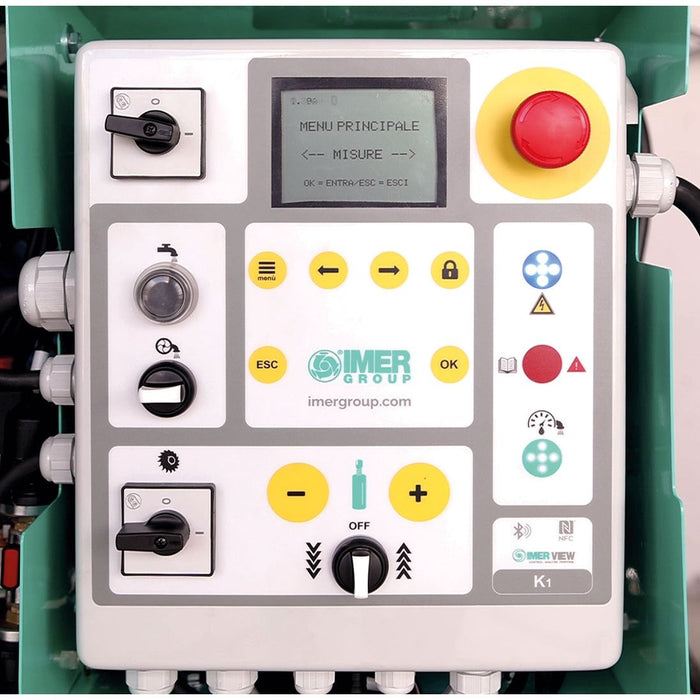

The parameters displayed directly can be modified according to your preferences using the inductive buttons that allow access to the setup menus.

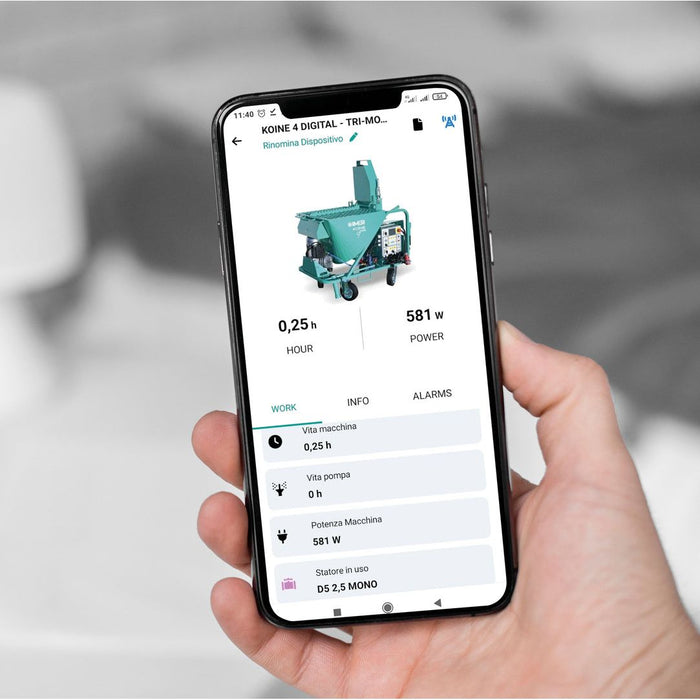

IoT interconnection via Bluetooth with the user’s smartphone through the IMER CONNECT app which can be downloaded for free from Google Play or App Store. The interconnection allows to monitor the status of the machine at any time and keep the operating hours and many other parameters under control. A very useful tool for finding any operating anomalies, which can be shared via SMS with the IMER Assistance Service.
With the IMER CONNECT app you can:

• Connect your mobile device to the machine via Bluetooth and view machine data in real time, with instructions for solving any problems
• Consult the information and download catalogs and sheets of all the products of the Equipment, Access and Concrete Divisions
• Consult the sales network and the assistance network of the different Divisions with the possibility of geolocation
• Instantly find the various channels to contact the company
• Access all IMER social channels
• Receive news on the product lines of your interest
