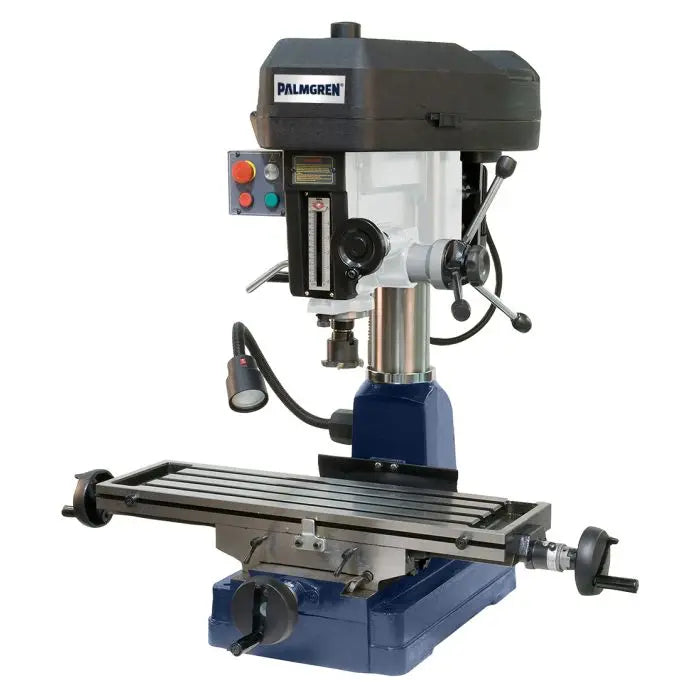

Palmgren 16" 1.5HP Mill/Drill Machine 9680113


Product Description

Palmgren 12-Speed Mill Drill Model 9680113 is a ruggedly constructed machine providing accurate milling, drilling, slotting and boring capabilities. One-piece cast-iron head rotates 360° and travels vertically by rack and pinion. Hinged pulley cover allows fast and easy speed changes. A 1-1⁄2 HP, 1725 RPM, 115/230-volt, 60 Hz single-phase motor and 115v work lamp are included. Prewired for 230V.


Features

  • 16” Swing
  • Fully enclosed R-8 spindle has heavy-duty tapered thrust bearings at top and bottom of quill
  • Large 32-3⁄8 x 9-1⁄2” table has dovetail ways with adjustable gibs and bronze lead screw nuts for accurate and rigid table positioning
  • Table has four 5/8” T-slots, zero-setting handwheel dials with .001” graduations, adjustable stops for longitudinal feed and cross feed way cover
  • 12 Speeds: 150 to 3000RPM
  • Adjustable depth stops with scale
  • Draw Bar (7/16”-20) and Way Cover
  • Spindle Stroke 5”
  • Work Light
  • Includes: Drill Chuck Arbor, 1/2" Chuck and Key, Face Mill Arbor, 3” Face Mill, R8/MT3 Adaptor, 6-pc R8 Collet Set



Specifications

Column Diameter 4-1/2"
Country of Origin TW
Draw Bar Thread 7/16" - 20
Drilling Capacity in Cast Iron 1-1/2"
Milling Cap Cutter Head (max) 3"
Milling Cap End Mill Cut (max) 3/4"
Milling Machines Type Gear Head
Motor HP 1-1/2
Overall Dimensions (LxWxH) 29" x 32" x 45"
Phase Single
Quill Collar Diameter 3-3/4"
Quill Diameter 3"
Quill Travel 5"
Speed Range 150 - 3,000 RPM
Spindle Taper R8
Swing 16"
Voltage 115/230
Warranty 3 Year
X Axis Travel 23"
Y Axis Travel 7"
UPC 726896801131
Unit of Measure Each
Product Height (in) 47
Product Length (in) 38
Product Width (in) 30
Product Weight (lbs) 593
