Core Drill | 3-Speed | Electric | Holes up to 6" dia.| CS Unitec

CS Unitec Electric Core Drill 3-Speed Holes up to 6" diameter

Product Description

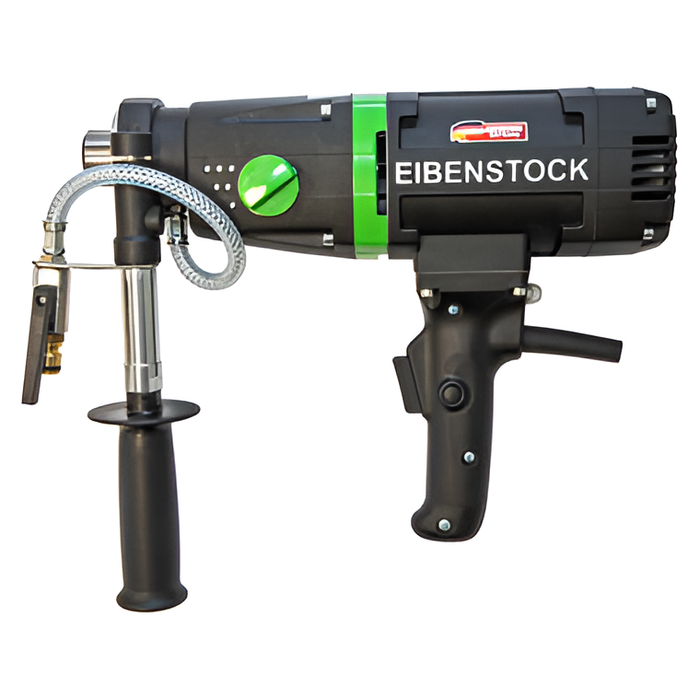

The compact, robust 3-speed Diamond Core Drill for holes up to 6" dia.

Fast, efficient core drilling system ideal for narrow and difficult to access places

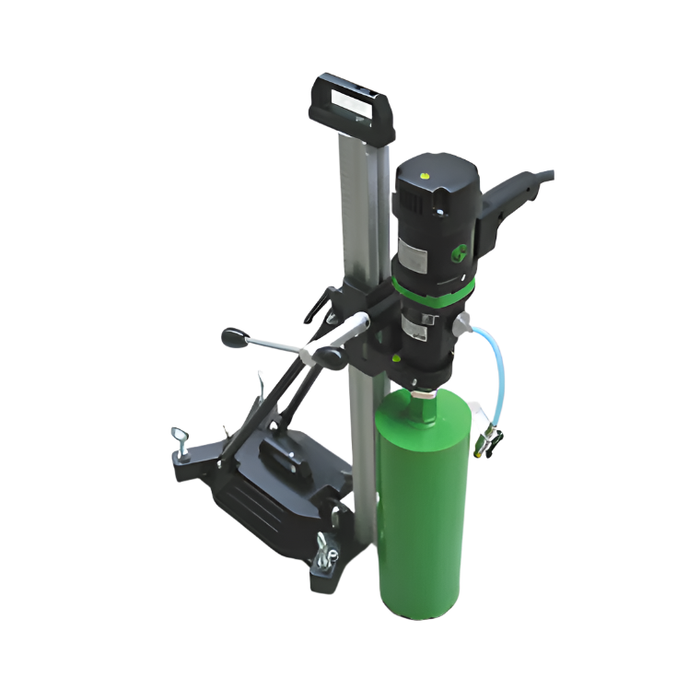

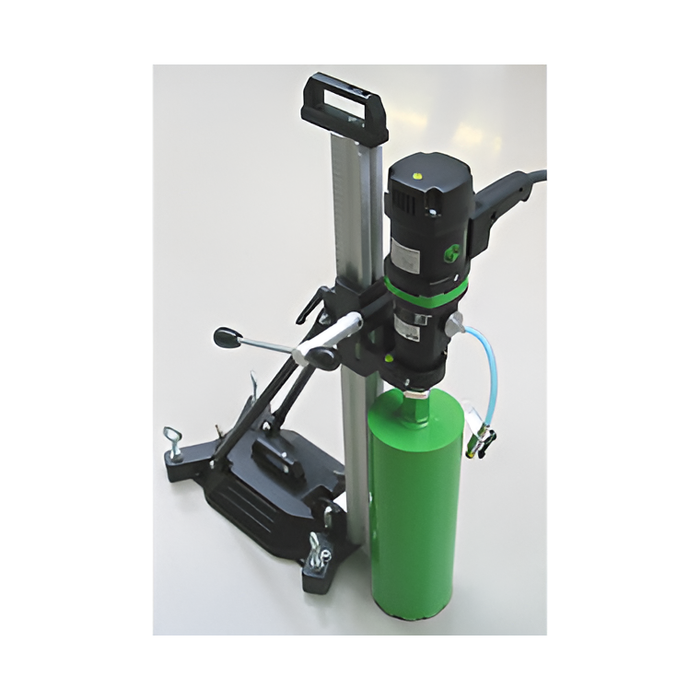

• Holes up to 6" diameter mounted in a drill stand

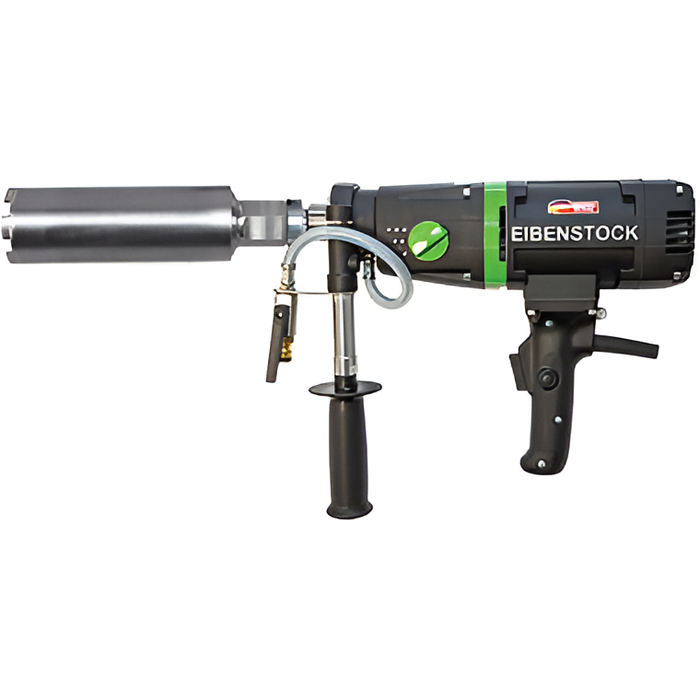

• Use hand-held up to 3-1/4" dia. and/or rig-mounted for up to 6" dia.
• Mechanical Slip Clutch Design
• Load Speeds: 600 / 1300 / 2800 RPM
• 15 Amps, 110V
• Weight: 16 lbs.

The best Diamond Core Drill in its class!

The Diamond Core Drill combines a robust all-aluminum housing with a compact size and powerful 15 AMP motor. The heavy-duty design and power reserve make it suitable for continuous use.

Use hand-held for up to 3-1/4" diameter and/or rig-mounted for up to 6" diameter. The mechanical 3-speed gearbox allows the operator to select the best speed for the core bit diameter. The result is optimum drilling and longer tool life.

All models include a built-in leveling bubble, safety slip clutch, carrying case, water swivel, overload signal and Ground Fault Interrupter. Connecting threads of 5/8" x 11 UNC, 1-1/4"x 7 UNC and G1/2" fit all standard core bits.

Use

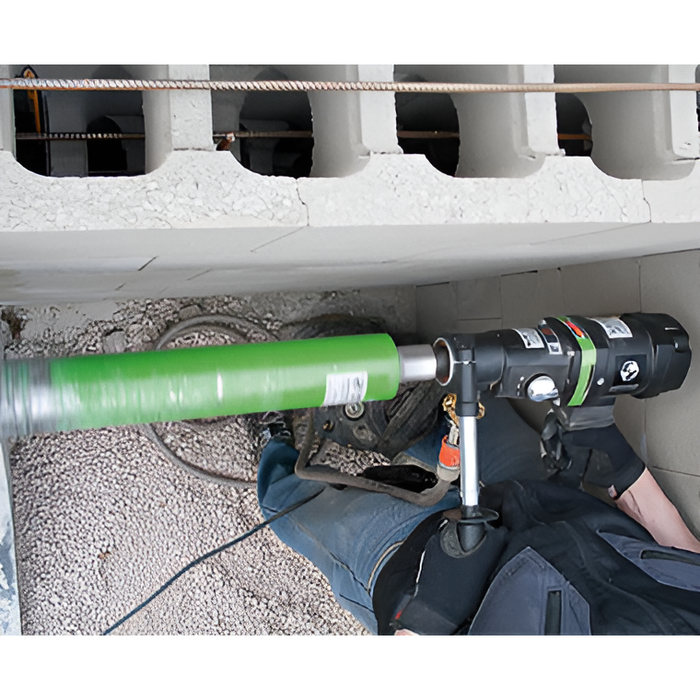

• Wet drilling in reinforced concrete, natural stone and asphalt especially for narrow, difficult accessible places, e.g. in pits
• Aluminium housing suitable for civil engineering
• Sanitary, heating and ventilation construction, civil engineering, landscape construction​

Features

• 3-speed oil bath gearbox – optimal lubrication
• Short, compact design for tight spaces
• All-aluminium housing
• Integrated level bubble on motor and handle for 90˚ drilling
• Side handle with connection for centering device or water collection
• Overload temperature control and GFCI overcurrent cut-off
• Overload indicator light turns red when motor is overloaded - allows operator to reduce the feed pressure and protect the motor
• Cut-off carbon brushes – protects the motor

Specifications

Product Document

Brochure

Schematics

Operating Manual
