Diamond Products CC8574DD-30 74HP Deutz Diesel Rider Saw with 30'' Guard


Product Description

Deep Cutting While Your Ride!  Full of Features!

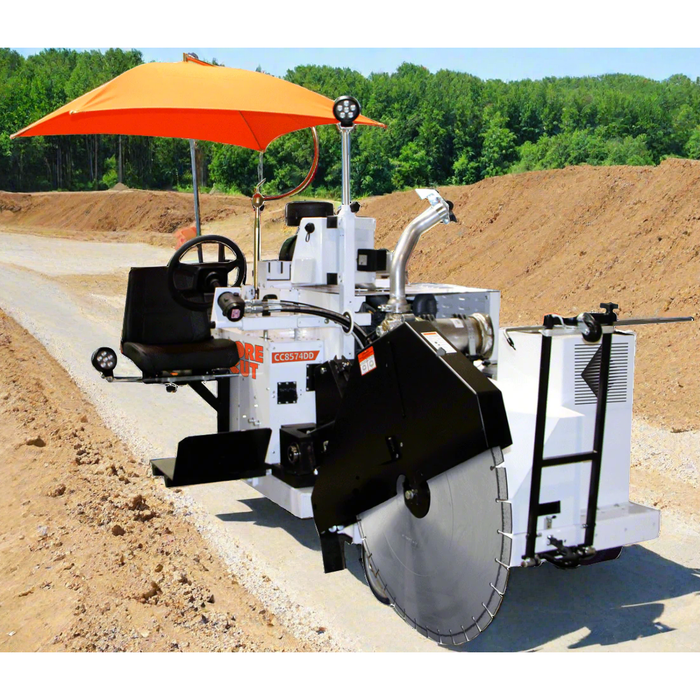

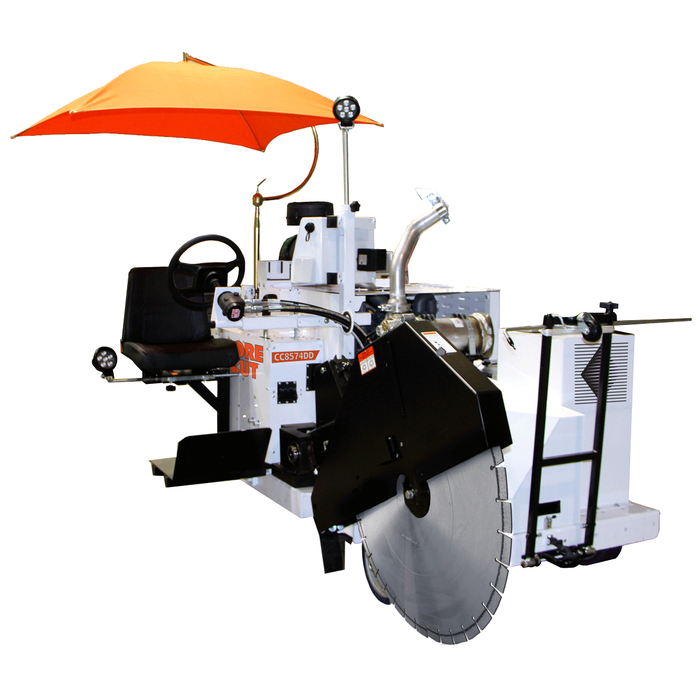

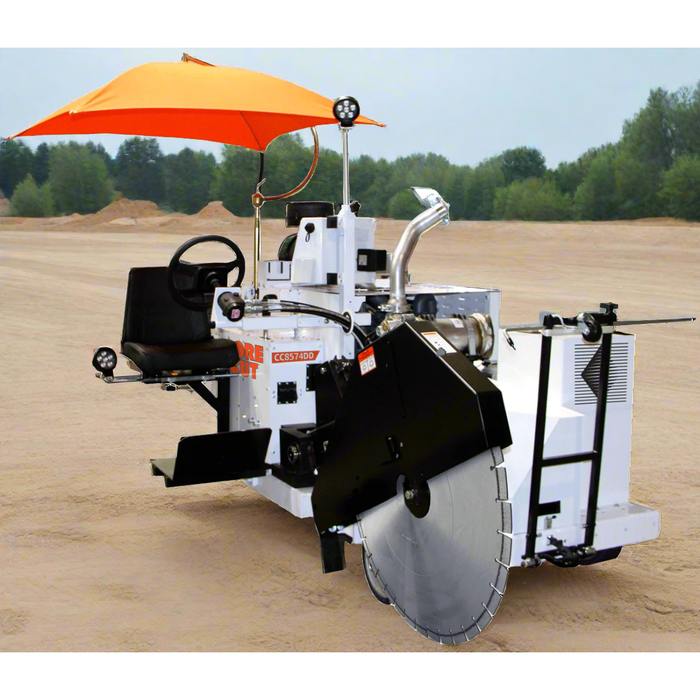

The CC8574DD is a high-performance ride-on concrete saw powered by a 74 HP Deutz 2.9 Turbo L4 diesel engine. Designed for deep cutting applications, it offers a maximum cutting depth of 11-3/4" with a 30" blade. Its advanced hydraulic system provides infinitely variable blade speed and programmable depth stops, ensuring precise and efficient operation. The saw features a redesigned frame for improved rigidity, large-diameter wheels for better traction, and a digital interface displaying essential metrics like engine speed, hydraulic temperature, and fuel level. Ideal for heavy-duty concrete cutting tasks, this rider saw combines power, durability, and user-friendly controls



Features

  • Redesigned frame for improved rigidity and strength
  • Engine and hydraulic cooler work off of the engine-mounted fan
  • Coolers located at the rear of the saw to reduce fouling
  • Reservoir with clean out access
  • Infinitely variable blade speed
  • Programmable depth stop
  • Updated rear drive motor with increased load capacity, higher top speed, integral parking brake
  • Steering actuator for improved control
  • Positive neutral lock for wheel drive
  • Large diameter front and rear wheels for better traction
  • Trailers itself up to a 12 degree incline
  • Sauer-Danfoss & Parker blade drive hydraulic components
  • Poclain & Parker wheel drive components

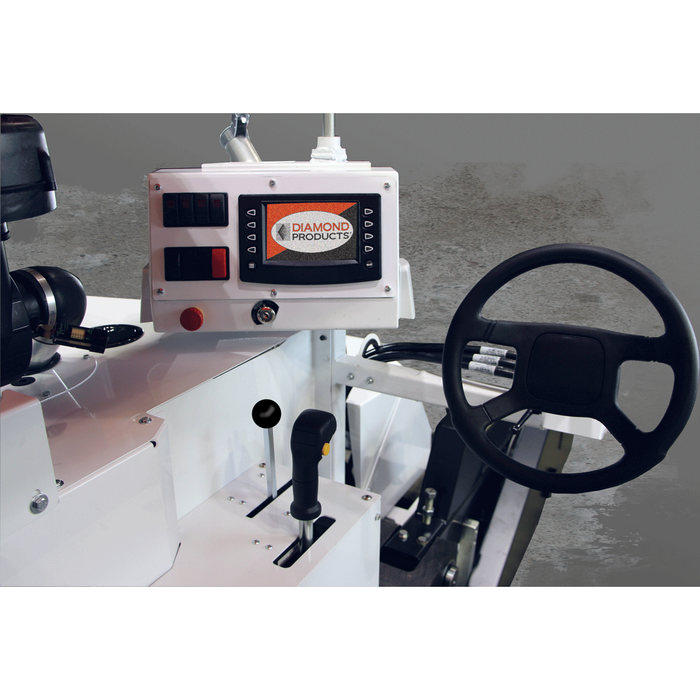

Digital Interface (7")

  • Engine and blade speed
  • Engine and hydraulic fluid temperature
  • Fuel level
  • Hydraulic low level and blade over speedwarning



Specifications

Max Depth of Cut w/ 30" Blade 11-3/4"
Engine Model Deutz 2.9 Turbo L4 Tier 4 Final
Blade Shaft Diameter 2-1/2"
Arbor Size 1" w/single drive pin
Blade Shaft Bearings Precision ball
Blade Shaft Drive Hydraulic motor
Blade Mounting Right side
Blade Raise/Lower Hydraulic, solenoid valve controlled
Transmission Variable displacement hydraulic pump & motor
Air Filter 8" Donaldson Alexin
Fuel Capacity 9.5 gallons
Includes Hour Meter, Tachometer, Telescoping Front Pointer, Adjustable Depth Stop, Cup Holder, Quick Disconnect Blade Flanges



Model

Blade Capacity Power Source Part Number Catalog Number
30” Diesel 5803303 78951



Product Documents

CC8574DD Rider Saw Operator Manual

CC8574DD Rider Saw Parts List
